ACB

ACB

Insertion type

MA Manual charging
Motor charging Operating power source of the motor
M1 AC/DC 110V
M2 AC/DC 220V
M3 DC 125V
M4 DC 24V
M5 DC 48V

Note

*
DC24, 48V is the underdeveloped rating.

Insertion power source

D1 AC/DC 110V
D2 AC/DC 220V
D3 DC 125V
D4 DC 24V
D5 DC 48V

Note

*
DC24, 48V is the underdeveloped rating.

A power source of Trip

D1 AC/DC 110V
D2 AC/DC 220V
D3 DC 125V
D4 DC 24V
D5 DC 48V

Note

*
DC24, 48V is the underdeveloped rating.

Auxiliary contact and charging type

Marking Auxiliary contact Charge Type
AX Standard type 5a5b Standard type (OFF Charge)
or manual charge method
HX High capacity 5a4b
AC Standard type 5a5b High speed reclose charging type
(ON Charge method)
HC High capacity 5a5b

Trip relay

OCR - II
Industry Option
000 None
LS6 L, S, I, P AC/DC110-220V 60Hz
LF6 L, S, I, G, P AC/DC110-220V 60Hz
LS5 L, S, I, P AC/DC110-220V 50Hz
LF5 L, S, I, G, P AC/DC110-220V 50Hz
LN6 * L, S, I, G, P AC/DC110-220V 60Hz
LN5 * L, S, I, G, P AC/DC110-220V 50Hz

Note

*
For type LN5 and LN6, please use Neutral CT (output : 5A) in case of using 3P ACB in 3phase 4wire circuit.
OCR - III
Industry protection Motor Option
000 000 None
N16 P16 L, S, I, G, P Comm.NO AC/DC110…220V 60Hz
N26 P26 L, S, I, G, P Comm.NO AC/DC24V 60Hz
N46 P46 L, S, I, G, P Comm.NO AC/DC48V 60Hz
C16 M16 L, S, I, G, P Comm.YES AC/DC110…220V 60Hz
C26 M26 L, S, I, G, P Comm.YES DC24V 60Hz
C46 M46 L, S, I, G, P Comm.YES DC48V 60Hz
N15 P15 L, S, I, G, P Comm.NO AC/DC110…220V 50Hz
N25 P25 L, S, I, G, P Comm.NO DC24V 50Hz
N45 P45 L, S, I, G, P Comm.NO DC48V 50Hz
C15 M15 L, S, I, G, P Comm.YES AC/DC110-220V 50Hz
C25 M25 L, S, I, G, P Comm.YES DC24V 50Hz
C45 M45 L, S, I, G, P Comm.YES DC48V 50Hz

UVT

00 Non-attachment type
U1 Attachment type

Optional parts (Installed with ACB by order)

B On/OFF Button Lock
M DI Door Interlock
MC1 Mechanical operated Cell switches 10a 10b standard
MC2 10a 10b high capacity
MD MW2 Wire Type
Mechanical Interlock
MD Combination OPTION
Wire Type
Mechanical Interlock + Door Interlock + MC1 (MC2)
K1 Key Lock (On-lock)
K2 Key Interlock

Code a Optional parts (Separate packing)

DF Door Frame
DC Door Cover
SBC Shorting b-contact
CTD Condensor trip device
OT OCR tester
Vertical adapter
(Fixed type)
1600A below Top,Lower
2000/2500/4000/5000A Top
2000/2500/4000/5000A Lower
3200A Top
3200A Lower

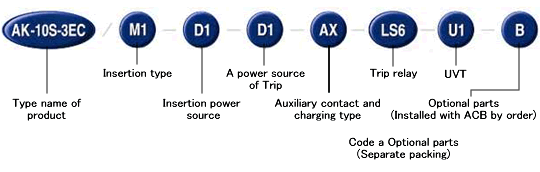

Type name of product

Type name of product

Rated current

06 630A
08 800A
10 1000A
13 1250A
16 1600A
20 2000A
25 2500A
32 3200A
40 4000A
50 5000A

Trip relay

S With trip relay (standard)
E Without trip relay (economic)

Number of pole

3 3Poles type
4 4Poles type

Installation method

E Draw-out type
P Fixed type

Disposal order of phase

C standard type order (R, S, T, N)
X reverse phase type order (N, R, S, T)

ACB Cradle

ACB Cradle

type

LCL ACB Cradle

Rated current

06/16 630-1600A
20/25 2000-2500A
32 3200A
4S 4000A
60 4000 … 6300A

Number of pole

3 3Poles type
4 4Poles type

Bus-bar type

S Horizontal
V Vertical

Note

*1
Vertical type is basic for draw-out type 4000,5000AF.
*2
Only vertical type of plug in type is available

Cradle type

E Safety shutter
non-attachment type
F Safety shutter
attachment type

Note

*
Auto-connection type

Reform order

C Standard type (R, S, T, N)
X Reverse phase type(N, R, S, T)

Note

*
Only standard type is available for 4000,5000AF

Code a Optional parts (Separate packing)

UVT Controller
00 Without UVT controller
V1 AC 110V Instantaneous, under 0.15sec
V2 AC 220V Instantaneous, under 0.15sec
V3 AC 380V Instantaneous, under 0.15sec
V4 AC 460V Instantaneous, under 0.15sec
E1 DC 24V Instantaneous, under 0.15sec
E2 DC 48V Instantaneous, under 0.15sec
E3 DC 110V Instantaneous, under 0.15sec
E4 DC 125V Instantaneous, under 0.15sec
T1 AC 110V Delay, over 0.5sec
T2 AC 220V Delay, over 0.5sec
T3 AC 380V Delay, over 0.5sec
T4 AC 460V Delay, over 0.5sec
F1 DC 110V Delay, over 0.5sec
F2 DC 220V Delay, over 0.5sec
F3 DC 380V Delay, over 0.5sec
F4 DC 460V Delay, over 0.5sec
D1 AC 110V Delay, over 0.3sec
D2 AC 220V Delay, over 0.3sec
D3 AC 380V Delay, over 0.3sec
D4 AC 460V Delay, over 0.3sec
Separate with ACB by order
4C Cell switch (4c)
8C Cell switch (8c)
DI Door interlock
MC1 Mechanical operation indicating
contact(standard type)
MC2 Mechanical operation indicating contact(High capacity type)
MD Wire Type
Mechanical Interlock + Door Interlock + MC1(MC2)
MIP Miss insertion prevent device
STL Safety shutter lock
Vertical adapter
(Draw-out type)
1600A below Top,Lower
2000/2500A Top
2000/2500A Lower
3200A Top
3200A Lower

Note

*
Please refer to page 40 for needed units of vertical adapters.

4000A
