CO2 Laser System Specifications
| Hitachi Series | LM-C300S (Without Beam Expander) | LM-C300P (With a Beam Expander) | |
|---|---|---|---|
| Model | LM-C330S | LM-C310P | LM-C330P |
| Laser Technology | CO2 Laser, Class 4 laser | ||
| Laser Power & Laser Wavelength | 30 W 10.6 µm (e. g. Paper, Cardboard, Glass) |
10 W 10.6 µm (e. g. Paper, Cardboard, Glass) |
30 W 10.6 µm (e. g. Paper, Cardboard, Glass) |
| 25 W 10.2 µm (e. g. OPP, PP, PE) |
25 W 10.2 µm (e. g. OPP, PP, PE) |
||
| 20 W 9.3 µm (e. g. PET) |
20 W 9.3 µm (e. g. PET) |
||
| Marking Area (mm) *1 | 40 × 40 60 × 60 *2 75 × 75 100 × 100 150 × 150 200 × 200 250 × 250 |
40 × 40 60 × 60 75 × 75 100 × 100 *2 150 × 150 200 × 200 250 × 250 |
|
| Guide Laser, Pointer (Options) | Red semiconductor, Wavelength 655 nm, Class 2 Laser | ||
| User Interface | Touch Screen (Option) / Laser Application (Option) | ||
| Shutter | Electromechanical Shutter | ||
| Protection | IP 54 | ||
| Weight | 25 kg | 17 kg | 25 kg |
| Dimension (Width × Height × Depth) | 216 × 179 × 709 (mm) | 196 × 148 × 698 (mm) | 216 × 179 × 709 (mm) |
| Laser Status Indicator | Ready (Green) / Marking (Blue) / Alarm (Orange) | ||
| Power Supply | AC100 to 120 V ± 10 %, AC200 to 240 V ± 10 % (50 / 60 Hz) | ||
| Power Consumption | 600 VA | 300 VA | 600 VA |
| Operating Temperature Range | 5 to 40 ℃ (No dew condensation or freezing allowed.) | ||
| Operating Humidity Range | 35 to 95 % RH (No dew condensation or freezing allowed.) | ||
- *1
- Vary corresponding lens with the wavelength
- *2
- Recommended models
Global standards
Conformity to Global standards
CE, UL, c-UL.

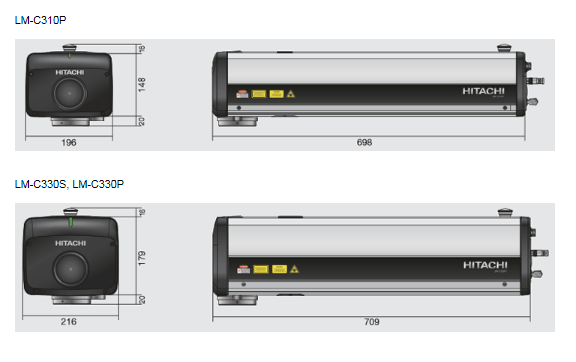

CO2 Dimensions of Laser Marker
